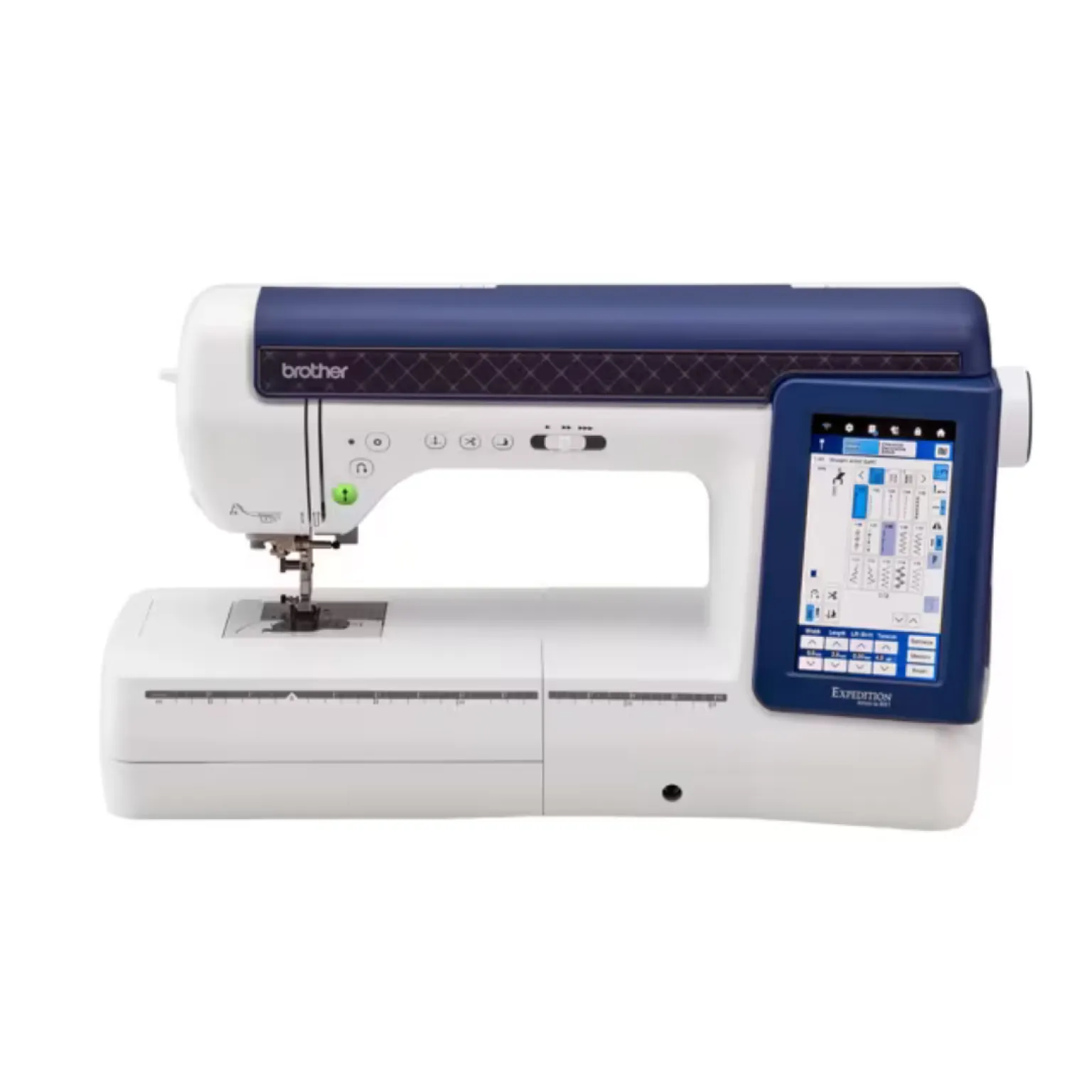

Brother Expedition BX1 Sewing and Embroidery Machine
Discover the freedom to sew, quilt, and embroider on one advanced machine with the Brother Expedition BX1 Sewing & Embroidery Combo Machine. Designed for makers who want premium performance without compromise, the BX1 features innovative sewing technology, a spacious workspace, and an extensive library of built-in stitches and embroidery designs to inspire your next masterpiece.
The Industry-First Curve Sewing feature allows fabric to rotate smoothly while the needle is down, making curved seams easier and more precise. A generous 10″ workspace and 8″ x 14″ embroidery area provide plenty of room for quilts, garments, home décor, and large embroidery projects. With 754 built-in sewing stitches, 774 built-in embroidery designs, 140 decorative frame patterns, and 23 embroidery fonts, you’ll have endless creative possibilities right at your fingertips.
The BX1 also features an External Laser Guideline Marker for perfectly straight stitching, My Custom Stitch and Stitch Tapering for creating personalized decorative stitches, and a crystal-clear 7″ HD LCD touchscreen for intuitive editing and navigation. Wireless LAN connectivity, the Artspira Mobile App, and the free Design Database Transfer software make it easy to create, organize, and transfer embroidery designs without cables.
Key Features
- Sewing and embroidery combination machine
- Industry-First Curve Sewing
- 10″ workspace from needle to arm
- 8″ × 14″ maximum embroidery area
- 754 built-in sewing stitches
- 774 built-in embroidery designs
- 140 decorative frame pattern variations
- 23 built-in embroidery fonts
- External Laser Guideline Marker
- My Custom Stitch & Stitch Tapering
- Crystal-clear 7″ HD LCD touchscreen
- Wireless LAN connectivity
- Artspira Mobile App compatible
- Design Database Transfer compatible
- Optional Intelligent Stitch Regulator
- Easy needle plate removal with interchangeable plates
- Compact Digital Dual Feed Foot
Benefits
- Sew, quilt, and embroider on one versatile machine
- Create smoother curves with innovative Curve Sewing technology
- Enjoy ample space for larger quilting and embroidery projects
- Personalize projects with hundreds of built-in stitches and embroidery designs
- Create and save your own decorative stitches
- Achieve straighter seams with the adjustable laser guideline
- Wirelessly transfer embroidery designs and stay inspired with Artspira
- Easily edit designs on the large HD touchscreen
Product Specifications
- Touchscreen Display: 7″ Color LCD Touchscreen (Up to 16,777,216 Colors)
- Stitch Selection: Clear Touch Panel
- Built-in Languages: 18
- On-Screen Help: Yes
- On-Screen Editing: Yes
- Lighting: 3 LED Lights
- Needle Threading System: Advanced Lever
- Easy Bobbin Winding: Yes
- Adjustable Bobbin Winding Speed: Yes
- Thread Sensor: Upper & Bobbin
- Automatic Thread Cutter: Yes
- Quick-Set Bobbin: Yes
- USB Ports: 1
- Computer Connectivity: USB or WLAN
- Wireless Connectivity (WLAN): Enabled
- Media Type: USB [1]
Embroidering & Dimensions
- Maximum Sewing Speed: 850 Stitches Per Minute
- Workspace: 10.0″ × 4.1″
- Bed Area: 14.7″ × 8.0″
- Feed Dogs: 7-Point Feed System (Long Version)
- Built-in Sewing Stitches: 754
- Built-in Sewing Fonts: 5 (4 Alphabet, 1 Cyrillic & 1 Japanese)
- Buttonhole Styles: 14 One-Step + 1 Four-Step
- Maximum Stitch Width: 7 mm
- Maximum Stitch Length: 5 mm
- Knee Lift: Yes
- MuVit™ Digital Compact Dual Feed: Yes
- Side Feeding: Yes
- Automatic Height Adjuster (AHA): Yes
- Presser Foot Pressure Adjustment & Leveling: Yes
- Pivot Function: Yes
- Drop Feed / Free-Motion: Yes
- Built-in Quilting Stitches: Yes
- Wide Table: Optional
- Unit Dimensions: 22.72″ W × 12.20″ H × 11.22″ D (Machine Only) / 32.09″ W × 12.20″ H × 20.63″ D with Embroidery Unit
- Unit Weight: 25.22 lbs (Machine Only) / 35.61 lbs with Embroidery Unit
What’s Included
- Standard Presser Feet (13), Free-Motion Quilting Feet
Shipping Safety
- The machine and all its digital components will be meticulously repacked using heavy-duty multi-layered bubble wrap, protective foam cushioning, and a sturdy custom replacement box to guarantee maximum protection during transit.
