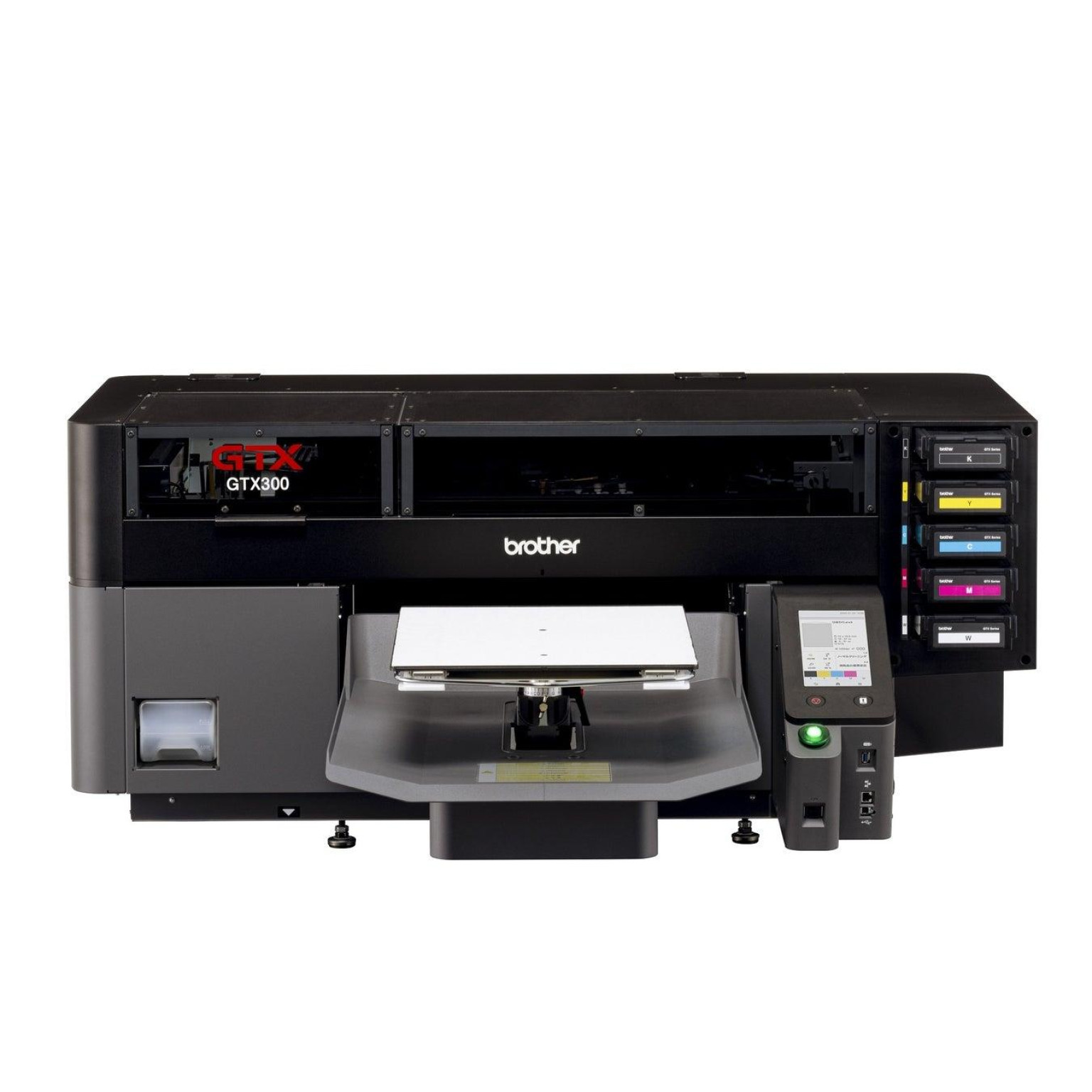

The Brother GTX300 Hybrid DTG/DTF Printer is a professional garment printing system designed for both Direct-to-Garment (DTG) and Direct-to-Film (DTF) production. Brother positions the GTX300 as a hybrid platform for startups, expanding businesses, and garment decorators that need flexibility across different apparel and transfer applications.

The GTX300 uses 5-color CMYKW water-based pigment ink, Brother-developed industrial piezo printheads, and Ink Flow Technology. With a maximum resolution of 1200 × 1200 DPI and maximum print size of 16" × 21", it is suitable for professional custom apparel, cotton garments, polyester products, blends, and DTF transfer production.

Key Features

• Hybrid Direct-to-Garment (DTG) and Direct-to-Film (DTF) printing
• Brother-manufactured industrial piezo printheads
• 5-color CMYKW water-based pigment ink
• Ink Flow Technology
• Automatic white ink circulation
• 2 printheads / 8 ink channels
• Up to 1200 × 1200 DPI resolution
• Maximum print size up to 16" × 21"
• 7-inch touchscreen control panel
• Industrial maintenance station
• Wet caps and wet wipers
• Supports both single and double CMYK printing
• Underbase and highlight modes for white ink
• USB, LAN, and USB Flash Drive connectivity
• GTX Graphics Lab software support
• Designed for startups, business expansion, and professional garment production

Product Specifications

• Printer Type: Hybrid Direct-to-Garment (DTG) and Direct-to-Film (DTF) Printer
• Model: Brother GTX300
• Printing Method: Direct Inkjet Garment Printing
• Printing Applications: Direct-to-Garment and Direct-to-Film Printing
• Ink Type: 5-Color Water-Based Pigment Ink
• Ink Configuration: CMYK + White (CMYKW)
• Printhead Technology: Brother-Manufactured Industrial Piezo Printheads with Ink Flow Technology
• Number of Printheads: 2 Printheads
• Ink Channels: 8 Ink Channels
• White Ink System: White Ink Circulation through Sub-Tanks, Ink Lines, and Printheads
• Print Resolution: 1200 × 1200 DPI
• Print Mode: Single or Double for CMYK; Underbase and Highlight for White
• Maximum Print Size: 16" × 21" (40.6 × 53.3 cm)
• Included Platen: Adult Platen, 14" × 16" (35.6 × 40.6 cm)
• Youth Platen: 10" × 12" (25.4 × 30.5 cm)
• Baby Platen: 7" × 8" (17.8 × 20.3 cm)
• Control Panel: 7-inch Touch Panel
• Maintenance System: Industrial Maintenance Station with Wet Caps and Wet Wipers
• Data Output: Printer Driver, USB, File Output, and LAN
• PC Connection: Hi-Speed USB 2.0
• Network: 100BASE-TX / 1000BASE-T LAN
• USB Flash Drive: SuperSpeed USB 3.0
• Operating Systems: Windows 11 (64-bit), macOS 14 Sonoma, and macOS 15 Sequoia
• Power Supply: AC 100–240V, 50/60Hz ±1Hz
• Power Consumption: Less than 180W during printing
• Machine Dimensions: 51.0" × 57.7" × 23.0" (1295 × 1465 × 583 mm) without stand, platen loading
• Maximum Machine Dimensions: 51.0" × 65.7" × 23.0" (1295 × 1670 × 583 mm)
• Machine Weight: Approx. 276 lbs (125 kg), including platen and excluding stand
• Recommended Print Environment: 66–86°F (19–30°C), 35–65% relative humidity
• Standby Environment: 50–95°F (10–35°C), 20–65% relative humidity
• DTG Ink Curing: Conveyor oven at 320°F (160°C) for 3 min 30 sec or heat press at 356°F (180°C) for 35 sec
• DTF Powder Curing: Conveyor oven at 320°F (160°C) for 5 minutes
• DTF Transfer Curing: Heat press at 302°F (150°C) for 20 seconds plus additional 20 seconds
• DTG Pretreatment: Manual or automatic pretreatment equipment required before DTG printing when using white ink
• Recommended Applications: Adobe Photoshop CC and Adobe Illustrator CC
• Suitable Users: Startups, apparel businesses, garment decorators, custom T-shirt businesses, DTG/DTF print shops, and expanding production operations
• Applications: T-Shirts, Hoodies, Cotton Garments, Polyester Apparel, Blended Fabrics, Sportswear, Promotional Clothing, Custom Apparel, Tote Bags, and DTF Transfers

Applications

• Direct-to-Garment Printing
• Direct-to-Film Printing
• T-Shirt Printing
• Hoodie Printing
• Custom Apparel
• Cotton Garment Printing
• Polyester Garment Printing
• Sportswear Printing
• Promotional Clothing
• Personalized Apparel
• Tote Bag Printing
• DTF Transfer Production
• On-Demand Garment Production
