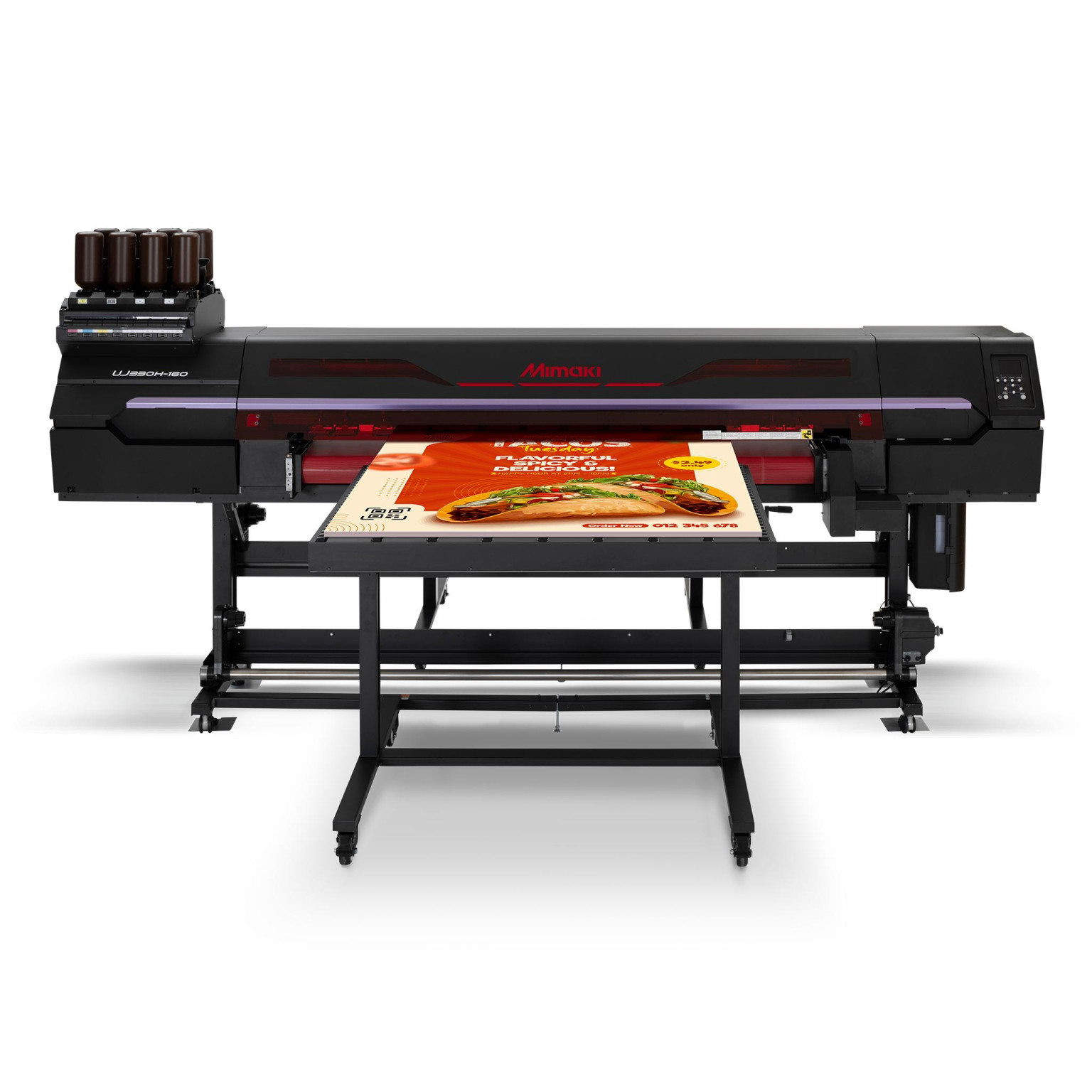

The Mimaki UJ330H-160 64" Hybrid UV Printer is a professional wide-format UV inkjet printer designed to print directly on both roll media and rigid boards using one machine.

This hybrid configuration allows print shops, sign companies, display manufacturers, and commercial graphics businesses to handle a wider range of applications without requiring separate roll-to-roll and flatbed printers.

The UJ330H-160 features Mimaki's 330 Series high-density printheads, a newly developed three-way belt conveyor system, and automatic media-to-head gap adjustment. The belt conveyor supports the media across its surface, helping provide stable transport for both rigid substrates and difficult flexible materials.

The printer has a maximum print width of 1,610 mm (63.4") and supports both roll and rigid media up to 1,620 mm (63.8") wide. Rigid media can be up to 50.8 mm (2") thick and up to 25 kg (55.1 lbs).

Mimaki specifies practical productivity of 14.0 m²/h when using CMYK + White + Clear or CMYK LcLm + White ink sets. The UJ330H-160 also supports White Ink, Clear Ink, and multi-layer printing of up to five layers.

Product Specifications

• Brand: Mimaki
• Model: UJ330H-160
• Product Type: Hybrid UV Inkjet Printer
• Printer Configuration: Roll-to-Roll + Direct-to-Rigid
• Printing Technology: UV-Curable Inkjet
• Printhead: On-Demand Piezo Head, 2 Staggered Layout
• Print Resolution: Y: 600 / 1,200 dpi; X: 600 / 900 / 1,200 / 1,800 dpi
• Minimum Ink Droplet Size: 4 pl
• Head Gap: Automatic nozzle-to-media distance adjustment
• Automatic Head Gap Range: 1.5–3.0 mm in 0.1 mm increments
• Maximum Print Width: 1,610 mm (63.4")
• Maximum Roll Media Width: 1,620 mm (63.8")
• Maximum Rigid Media Width: 1,620 mm (63.8")
• Minimum Media Width: 210 mm (8.3")
• Roll Media Diameter: Up to 250 mm (9.8")
• Maximum Roll Weight: 45 kg (99 lbs)
• Roll Core Diameter: 2" / 3"
• Rigid Media Length: 280–2,500 mm (11–98.4")
• Maximum Controlled Rigid Media Length: Up to 3,100 mm (122.0")
• Maximum Print Length: Up to 3,090 mm (121.7")
• Maximum Rigid Media Thickness: 50.8 mm (2")
• Maximum Rigid Media Weight: 25 kg (55.1 lbs)
• Maximum Rigid Media Weight per Area: 7 kg/m² (15.4 lbs/m²)
• Practical Productivity: 14.0 m²/h with specified multi-color configurations
• Ink Type: UV-Curable Ink
• Compatible Ink: ELS-170 / ELS-175 / LUS-210
• Ink Capacity: 1 L bottles
• Ink Options: CMYK, CMYK Lc Lm, White, Clear depending on configuration
• Multi-Layer Printing: Up to 5 layers
• Automatic Media Adjustment: DAS2
• Conveyor System: UV × 3-Way Conveyor System
• Interface: Ethernet 1000BASE-T / USB 2.0 Hi-Speed
• Power Supply: Single-phase AC 100–120 V ±10% / 8 A or AC 200–240 V ±10% / 4 A, 50/60 Hz
• Power Configuration: Two power inputs
• Maximum Power Consumption: 800 W × 2
• Average Running Power: Inlet 1: 400 W / Inlet 2: 500 W
• Standby Power: 4.5 W or less × 2
• Operating Temperature: 20–30°C (68–86°F)
• Recommended Temperature: 20–25°C (68–77°F)
• Operating Humidity: 35–65% RH, non-condensing
• Machine Dimensions – Main Unit: 3,225 × 785 × 1,420 mm
• Machine Dimensions – Main Unit: 126.9" × 30.9" × 55.9"
• Main Unit + 1 Roller Table: 3,225 × 2,664 × 1,420 mm
• Main Unit + 2 Roller Tables: 3,225 × 4,712 × 1,420 mm
• Machine Weight – Main Unit: 386 kg (851 lbs)
• Certifications: VCCI Class A, FCC Class A, ETL IEC 62368-1, CE, CB, REACH, ENERGY STAR, RCM, EAC, KC, UKCA

Key Features

• 64" class hybrid UV printer
• Prints both roll and rigid media
• Maximum print width of 63.4"
• Supports media up to 63.8" wide
• Supports rigid media up to 2" thick
• Maximum rigid media weight of 55.1 lbs
• Practical productivity up to 14.0 m²/h with specified ink configurations
• Two staggered high-density printheads
• Automatic nozzle-to-media gap adjustment
• Three-way belt conveyor system
• White Ink capability
• Clear Ink capability
• Up to five-layer printing
• 4 pl minimum ink droplet
• Automatic DAS2 media adjustment
• 1-liter ink bottles
• Gigabit Ethernet connectivity
• ENERGY STAR certified
• Designed for both flexible and rigid substrates

Roll Media Applications

The UJ330H-160 is suitable for:

• Self-Adhesive Vinyl
• Banners
• Tarpaulin
• Wallpaper
• Fabric
• Window Graphics
• Vehicle Graphics
• Vehicle Wrapping
• Floor Graphics
• Flags
• Retail Graphics
• Signage

Mimaki specifically highlights its ability to handle thin films and fabrics that can be difficult to transport with conventional grit-roller systems.

Rigid Media Applications

The hybrid configuration allows direct printing on rigid substrates for:

• Outdoor Signboards
• Illuminated Signboards
• Guide Plates
• Wedding Boards
• Display Boards
• Rigid Signage
• POS Displays
• Specialty Boards
• Interior Décor
• Floor Signage
