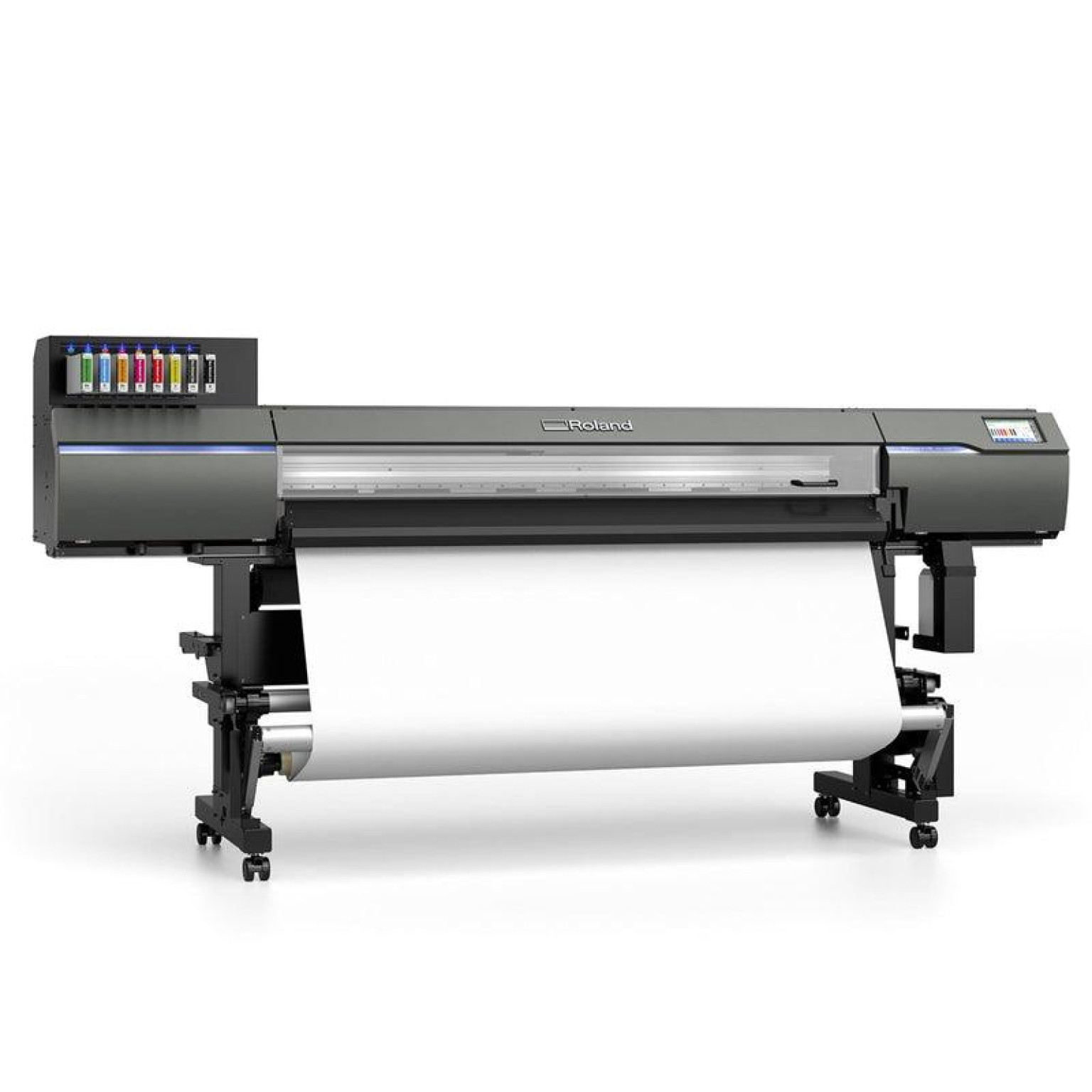

The Roland TrueVIS XP-640 64" Eco-Solvent Printer is a professional wide-format production printer designed for high-volume signage, advertising, vehicle graphics, banners, decals, posters, and other commercial graphics applications.
The XP-640 combines high-speed production with Roland's TrueVIS image quality, making it suitable for businesses that need both productivity and detailed, vibrant output. The printer uses Piezo inkjet technology and supports Eco-Solvent TH ink in 500 mL cartridges.
The XP-640 accepts media from 10.2" to 64" wide and supports rolls weighing up to 99 lbs (45 kg). Its maximum printing width is 63.5", while maximum print resolution reaches 1,800 dpi.
The printer supports either an 8-color configuration consisting of Cyan, Magenta, Yellow, Black, Light Black, Green, Orange, and Red, or a standard 4-color CMYK configuration. The expanded 8-color configuration provides a broader color range for demanding commercial graphics.
Product Specifications
- Product Type: Wide-Format Eco-Solvent Printer
- Brand: Roland DG
- Series: TrueVIS
- Model: XP-640
- Printing Technology: Piezo Inkjet
- Maximum Media Width: 64" (1,625 mm)
- Minimum Media Width: 10.2" (259 mm)
- Maximum Printing Width: 63.5" (1,615 mm)
- Maximum Media Thickness: 1.0 mm (39.3 mil) with liner
- Maximum Roll Diameter: 9.8" (250 mm)
- Maximum Roll Weight: 99 lbs (45 kg)
- Media Core Diameter: 3" (76.2 mm) or 2" (50.8 mm)
- Ink Type: Roland Eco-Solvent Ink
- Ink Cartridge Capacity: 500 mL
- Ink Configuration: 8-Color or 4-Color
- 8-Color Configuration: CMYK + Light Black + Green + Orange + Red
- 4-Color Configuration: CMYK
- Maximum Print Resolution: 1,800 dpi
- Print Heater Temperature: 86°F–113°F (30°C–45°C)
- Dryer Temperature: 86°F–131°F (30°C–55°C)
- Connectivity: Ethernet 100BASE-TX / 1000BASE-T
- Power Supply: AC 100–120 V / 220–240 V, 50/60 Hz
- Rated Current: 8.9 A / 4.5 A
- Power Consumption During Operation: Approx. 1,180 W
- Sleep Mode Power Consumption: Approx. 50 W
- Operating Noise: 66 dB(A) or less
- Standby Noise: 53 dB(A) or less
- Machine Dimensions: 113.7" W × 29.5" D × 55.8" H
- Machine Dimensions: 2,886 × 748 × 1,415 mm
- Machine Weight: 417 lbs (189 kg)
- Operating Temperature: 68°F–89.6°F (20°C–32°C)
- Operating Humidity: 35%–80% RH, non-condensing
- Included Software: VersaWorks and Roland DG Connect
- Included Equipment: Dedicated stand, power cord, media take-up unit, media holders, replacement separating-knife blade, cleaning supplies, drain bottle, and user documentation
Key Features
- 64" maximum media width
- 63.5" maximum printing width
- Up to 1,800 dpi resolution
- Professional wide-format eco-solvent printing
- 8-color expanded-gamut configuration
- 4-color CMYK configuration
- Light Black, Green, Orange, and Red support in 8-color configuration
- 500 mL ink cartridges
- Up to 99 lbs (45 kg) roll capacity
- Integrated media heating system
- Ethernet connectivity
- VersaWorks RIP software
- Roland DG Connect
- Designed for high-volume commercial production
Main Applications
- Large-format signage
- Banners
- Posters
- Vehicle graphics
- Vehicle wraps
- Stickers
- Decals
- Window graphics
- Wall graphics
- Retail graphics
- Promotional displays
- Outdoor advertising
- Commercial signage
- High-volume wide-format printing
