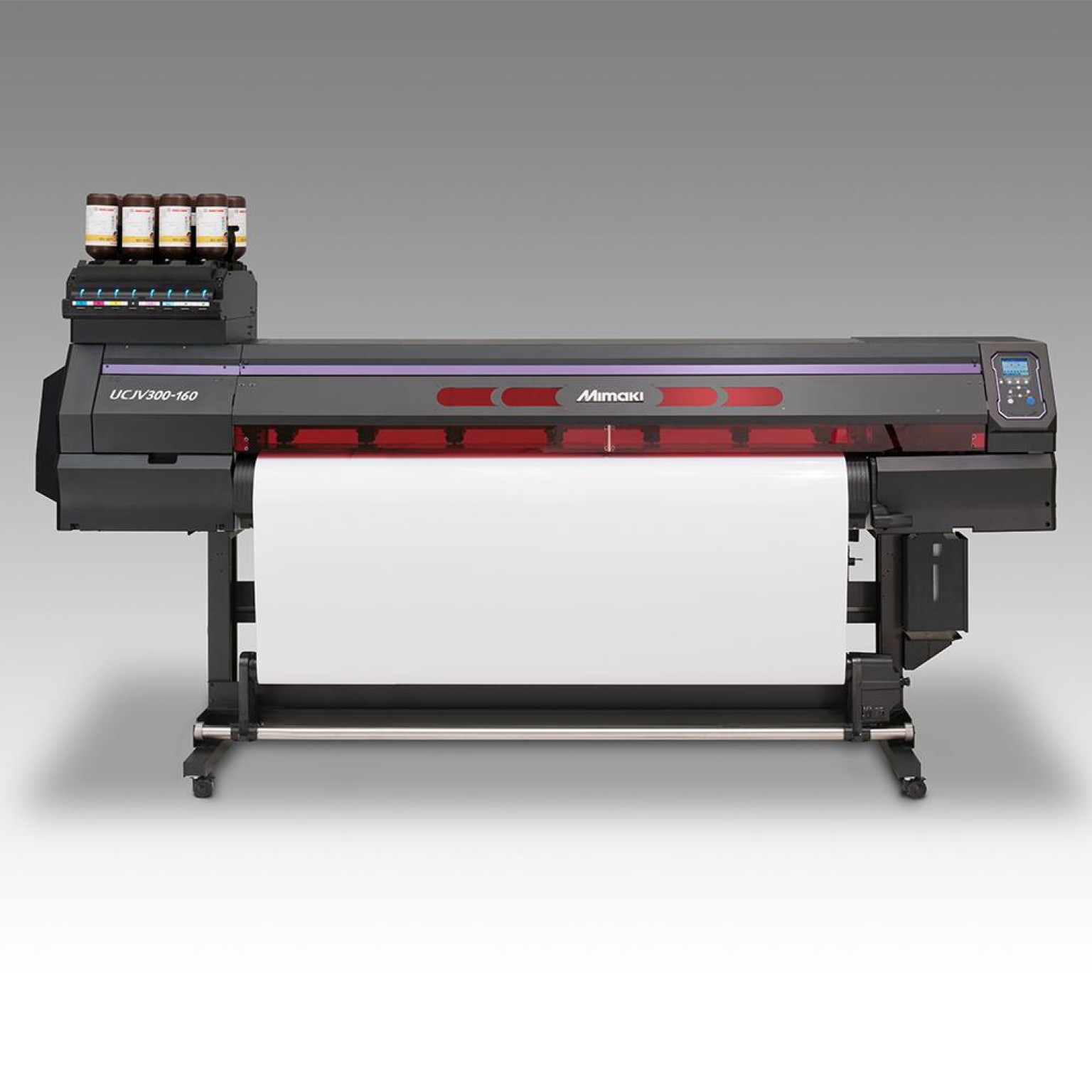

The Mimaki UCJV300-160 64" UV-LED Printer/Cutter is a professional wide-format UV printing and cutting system designed for sign shops, print service providers, vehicle graphics businesses, retailers, and commercial graphic production.
Combining UV-LED printing and integrated print-and-cut functionality, the UCJV300-160 provides a versatile production workflow for signage, banners, posters, window graphics, vehicle wraps, wallpaper, decals, labels, POP displays, and other specialty graphics.
The UCJV300 Series uses on-demand piezo printhead technology and Mimaki LED-UV inks. It supports print resolutions from 300 dpi to 1,200 dpi, with a maximum print width of 1,610 mm (63.4") and maximum media width of 1,620 mm (63.8") for the UCJV300-160.
Mimaki also highlights the UCJV300 Series for advanced 4-layer and 5-layer printing, allowing special visual effects and backlit/window-graphic applications in addition to standard UV printing and cutting.
Product Specifications
- Brand: Mimaki
- Series: UCJV300 Series
- Model: UCJV300-160
- Product Type: UV-LED Printer/Cutter
- Printer Type: Roll-to-Roll
- Printing Technology: LED-UV Inkjet
- Printhead: On-Demand Piezo Printhead
- Print Resolution: 300 / 600 / 900 / 1,200 dpi
- Minimum Ink Droplet Size: 7 pl
- Maximum Ink Droplet Size: 28 pl
- Head Gap: Manual 3-position adjustment – 2.0 / 2.5 / 3.0 mm
- Maximum Print Width: 1,610 mm (63.4")
- Maximum Media Width: 1,620 mm (63.8")
- Maximum Media Thickness: 1.0 mm or less
- Maximum Media Roll Diameter: 250 mm (9.8") or less
- Maximum Media Roll Weight: 40 kg (88.2 lbs) or less
- Ink Type: LED-UV Ink
- Compatible Ink: LUS-170 / LUS-175 / LUS-200, depending on market and configuration
- Ink Capacity: 1 L bottle supply
- Available Ink Colors: CMYK, Light Cyan, Light Magenta, White, Clear depending on ink configuration
- Cut Speed: Up to 300 mm/s
- 45° Cutting Speed: Up to 420 mm/s
- Cutting Pressure: 10–450 gf
- Cutter Types: Eccentric cutter, small-character blade, reflective-sheet blade
- Connectivity: Ethernet / USB
- Printer Function: UV Printing + Integrated Cutting
- Print/Cut Width: Up to 1,610 mm (63.4")
Key Features
- 64" class wide-format UV printer/cutter
- Integrated UV printing and cutting
- 63.4" maximum print/cut width
- Up to 63.8" media width
- LED-UV curing technology
- On-demand piezo printhead
- Up to 1,200 dpi resolution
- 7–28 pl droplet range
- White ink capability
- Clear ink capability
- Up to 300 mm/s cutting speed
- Up to 420 mm/s cutting speed at 45°
- Cutting pressure up to 450 gf
- 1-liter ink bottle supply
- 4-layer and 5-layer print capability
- Roll-to-roll production workflow
- Professional print-and-cut system
4-Layer and 5-Layer Printing
One of the major advantages of the UCJV300 Series is its multilayer printing capability.
This can be used for applications such as:
- Day/night window graphics
- Backlit graphics
- Special visual effects
- Double-sided visual applications
- Specialty signage
- Decorative graphics
Mimaki describes the UCJV300 as a high-specification model combining UV-LED printing, Print & Cut, and 4-layer/5-layer printing.
Main Applications
- Signage
- Banners
- Posters
- Window Graphics
- Vehicle Wrapping
- Vehicle Graphics
- Wallpaper
- Labels
- Decals
- POP Displays
- POS Displays
- Flags
- Retail Graphics
- Promotional Graphics
- Backlit Graphics
- Day/Night Window Graphics
- Cutting Sheet Stickers
- Commercial Wide-Format Printing
