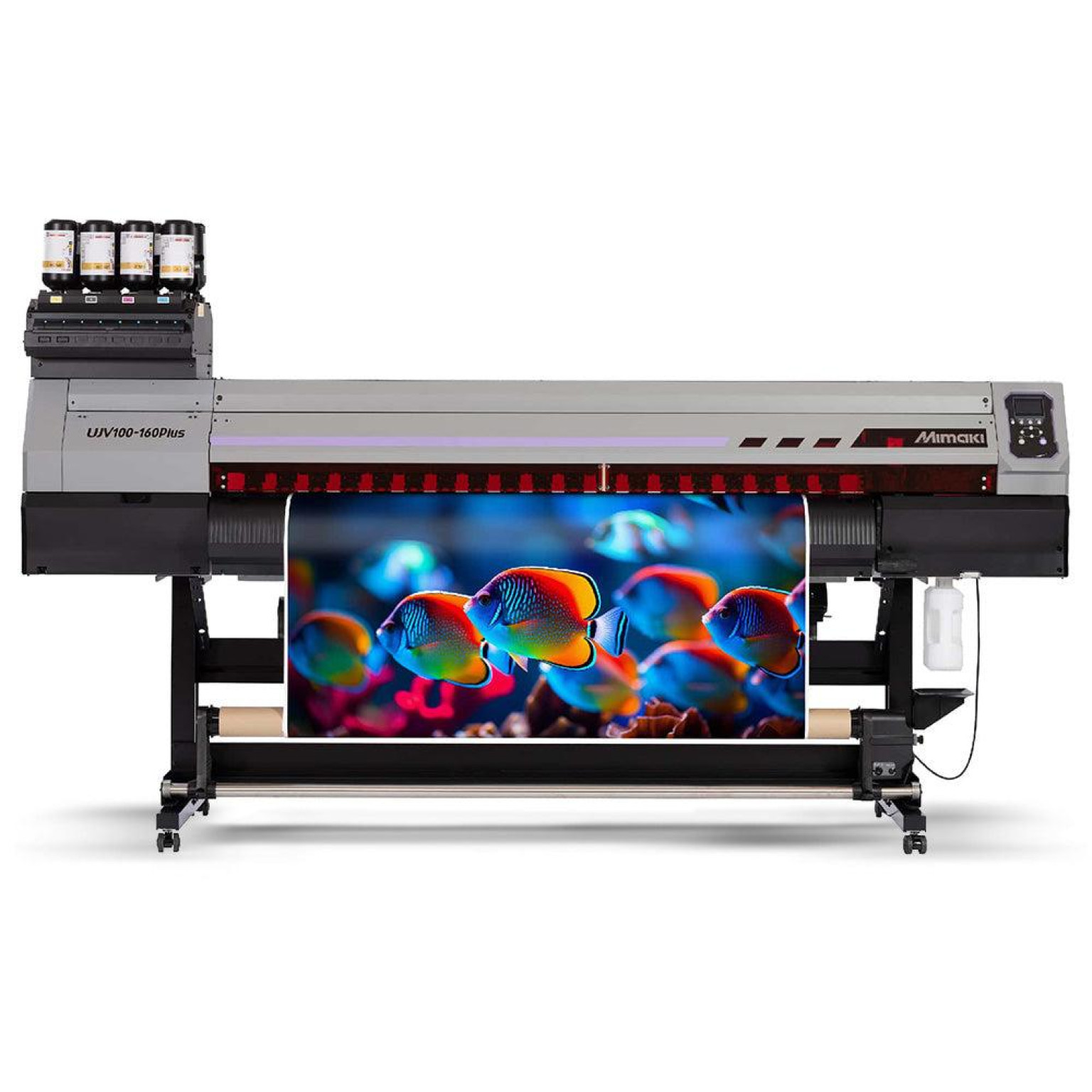

The Mimaki UJV100-160Plus 64" Roll-to-Roll UV-LED Printer is a professional wide-format UV inkjet printer designed for high-quality signage, banners, posters, window graphics, vehicle wrapping, wallpaper, labels, decals, POP displays, and commercial graphics.
The UJV100-160Plus features two staggered on-demand piezo printheads and UV-curable ink technology. It supports print resolutions from 360 dpi up to 1,200 dpi, with a maximum print width of 1,610 mm (63.4") and maximum media width of 1,620 mm (63.8").
The printer supports Mimaki LUS-170, LUS-190, and LUS-210 UV-curable ink, depending on regional availability. The available ink configuration can include CMYK, White, and Clear, with ink supplied in 1-liter bottles.
Product Specifications
- Brand: Mimaki
- Model: UJV100-160Plus
- Product Type: Wide-Format UV-LED Inkjet Printer
- Printer Type: Roll-to-Roll
- Print Technology: UV-Curable Inkjet with UV-LED Curing
- Print Head: On-Demand Piezo Head, 2 Staggered Layout
- Print Resolution: 360 dpi / 720 dpi / 900 dpi / 1,200 dpi
- Maximum Print Width: 1,610 mm (63.4")
- Maximum Media Width: 1,620 mm (63.8")
- Maximum Media Thickness: 1.0 mm
- Maximum Roll Diameter: 250 mm (9.8")
- Maximum Roll Weight: 45 kg (99.2 lbs)
- Roll Core Diameter: 2" / 3"
- Ink Type: UV-Curable Ink
- Compatible Ink: LUS-170 / LUS-190 / LUS-210
- Ink Capacity: 1-liter bottles
- Available Ink Colors: C, M, Y, K, W, Cl
- Interface: USB 2.0 Hi-Speed / Ethernet 1000BASE-T
- Maximum Power Consumption: 500 W
- Sleep Power Consumption: 4.5 W
- Power Supply: Single-Phase AC 100–120 V ±10% / AC 200–240 V ±10%
- Frequency: 50/60 Hz ±1 Hz
- Operating Temperature: 20–30°C (68–86°F)
- Operating Humidity: 35–65% RH, non-condensing
- Machine Dimensions: 2,775 × 700 × 1,475 mm
- Machine Dimensions: 109.3 × 27.6 × 58.1"
- Machine Weight: 167 kg (368.2 lbs)
- Certifications: VCCI Class A, FCC Class A, ETL IEC 62368-1, CE, CB, REACH, ENERGY STAR, EAC, RCM
Key Features
- 64" class wide-format UV printer
- 63.4" maximum print width
- Roll-to-roll UV-LED printing
- Two staggered on-demand piezo printheads
- Up to 1,200 dpi resolution
- UV-curable ink technology
- CMYK printing
- White ink capability
- Clear ink capability
- 1-liter ink bottles
- Supports media up to 63.8" wide
- Supports rolls up to 45 kg
- USB 2.0 Hi-Speed
- Ethernet 1000BASE-T
- ENERGY STAR certified
- Professional wide-format production workflow
Main Applications
- Signage
- Banners
- Posters
- Window Graphics
- Vehicle Wrapping
- Wallpaper
- Labels
- Decals
- POP Displays
- Flags
- Retail Graphics
- Promotional Graphics
- POS Displays
- Proofing
- Commercial Wide-Format Printing
