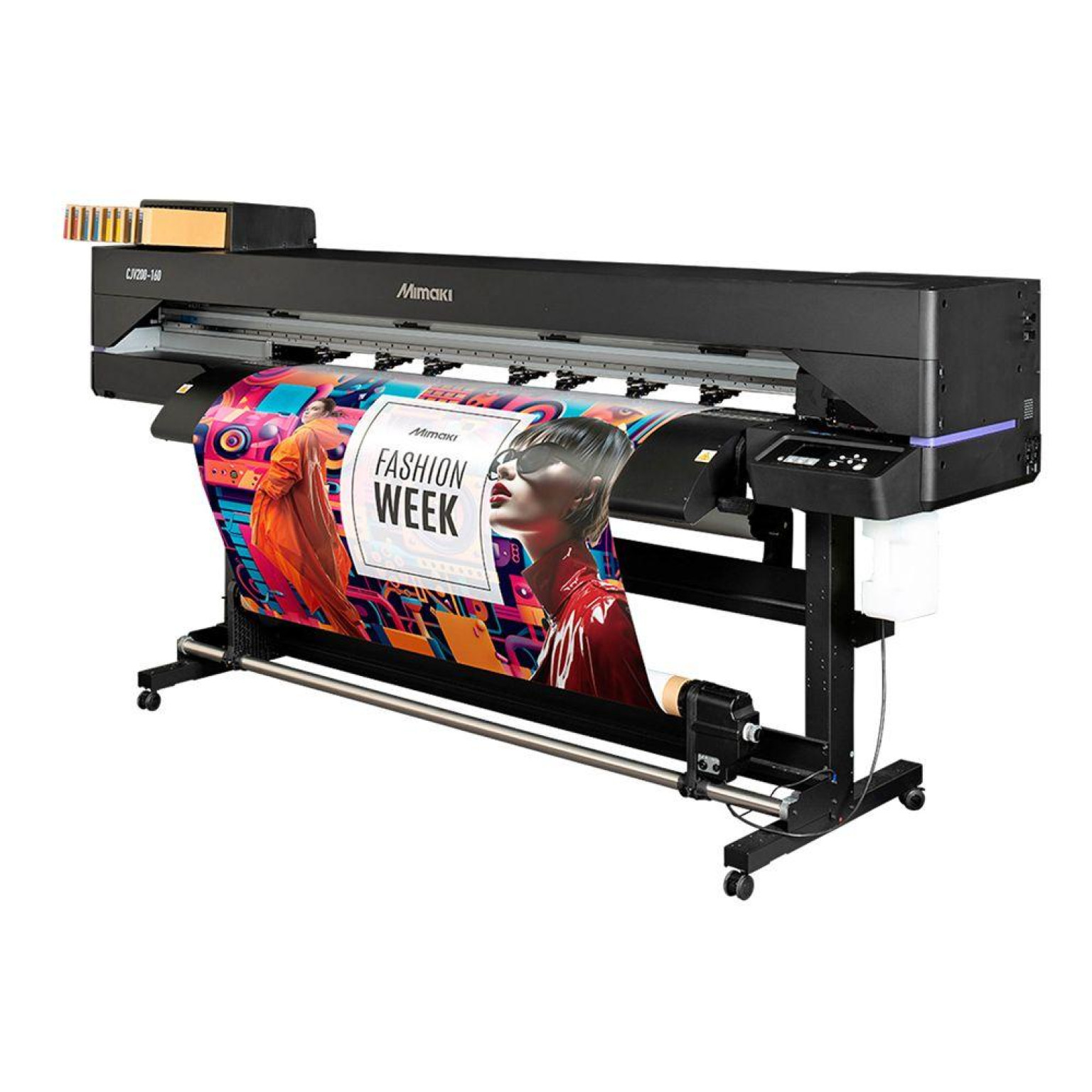

The Mimaki CJV200-160 63" Eco-Solvent Printer Cutter is a professional wide-format print-and-cut machine designed for high-quality signage, vehicle graphics, decals, banners, stickers, and other commercial graphic applications.
Featuring Mimaki's single On-Demand Piezo printhead and 330 Engine, the CJV200-160 combines high-quality eco-solvent printing with integrated contour cutting in one machine. It supports a maximum print and cut width of 1,610 mm (63.4") and accepts media up to 1,620 mm (63.8") wide.
The CJV200-160 supports print resolutions up to 1200 dpi, cutting speeds up to 300 mm/sec, and cutting pressure up to 450 gf. It is designed for efficient production of large-format signage and vehicle wrapping films while providing an integrated print-and-cut workflow.
Product Specifications
- Product Type: Wide-Format Eco-Solvent Printer Cutter
- Brand: Mimaki
- Model: CJV200-160
- Print Technology: On-Demand Piezo Inkjet
- Printhead: Single On-Demand Piezo Printhead
- Print Resolution: 600 × 600 dpi / 900 × 900 dpi / 1200 × 1200 dpi
- Maximum Print & Cut Width: 63.4" (1,610 mm)
- Maximum Media Width: 63.8" (1,620 mm)
- Maximum Media Thickness: 1.0 mm or less
- Maximum Roll Diameter: 180 mm or less
- Standard Maximum Roll Weight: 55.1 lbs (25 kg)
- Maximum Roll Weight with Option: 99.2 lbs (45 kg)
- Media Core Diameter: 2" / 3"
- Ink Type: Eco-Solvent Ink
- Supported Ink: SS22 / SS21 / BS4 depending on market and configuration
- SS22 Ink Colors: C, M, Y, K, Lc, Lm, Lk, Orange
- SS21 Ink Colors: C, M, Y, K, Lc, Lm, Lk, Orange
- BS4 Ink Colors: C, M, Y, K
- Maximum Cutting Speed: 300 mm/sec
- Cutting Acceleration: Maximum 0.5G
- Cutting Pressure: 10–450 gf
- Cutter Response: 10 times/sec
- Cutting Repeatability: ±0.2 mm, excluding media shrinkage/expansion caused by film temperature
- Interface: Ethernet 1000BASE-T / USB 2.0 Hi-Speed
- Power Supply: Single-phase AC 100–120 V / 200–240 V × 2, 50/60 Hz ±1 Hz
- Maximum Power Consumption: 1,320 W × 2 or less
- Sleep Mode Power Consumption: 4.5 W or less
- Operating Temperature: 20–30°C (68–86°F)
- Recommended Temperature: 20–25°C (68–77°F)
- Operating Humidity: 35–65% RH, non-condensing
- Machine Dimensions: 109.1" W × 29.4" D × 53.9" H
- Machine Dimensions: 2,770 × 748 × 1,370 mm
- Machine Weight: 308.6 lbs (140 kg)
- Certifications: VCCI Class A, FCC Class A, ETL IEC 62368-1, CE, CB, Energy Star, RCM, KC
Key Features
- 63.4" maximum print and cut width
- 63.8" maximum media width
- Integrated eco-solvent printing and contour cutting
- Single On-Demand Piezo printhead
- Mimaki 330 Engine
- Up to 1200 dpi print resolution
- Up to 300 mm/sec cutting speed
- Up to 450 gf cutting pressure
- Supports SS22, SS21, and BS4 ink configurations depending on market
- Optional media support up to 45 kg
- Ethernet 1000BASE-T connectivity
- USB 2.0 Hi-Speed connectivity
- Designed for signage and vehicle wrapping applications
Main Applications
- Vehicle Wrapping
- Vehicle Graphics
- Large-Format Signage
- Banners
- Posters
- Stickers
- Decals
- Labels
- Window Graphics
- Wall Graphics
- POP Displays
- POS Displays
- Promotional Graphics
- Commercial Print & Cut Production
